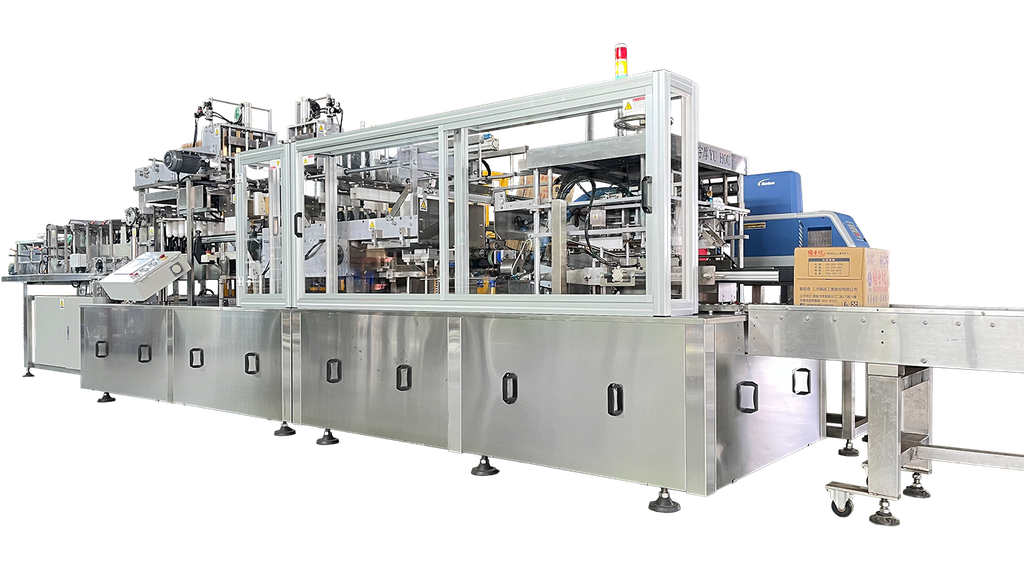

Wrap-Around Case Packer With Cardboard Partition Insertion Device

YH GBP Series
https://www.yuhoupack.com/web/image/product.template/14/image_1920?unique=e1c87f4

The YH GBP Series is an automatic wrap-around case packer designed to insert cardboard partitions between glass bottles and wrap them into cartons using corrugated cardboard. All models are compatible with bottle format conversion modules, allowing flexible production of different packaging styles to meet various product and market needs.

    Video

    This combination does not exist.

    AdvantageProduct FeaturesProcessed ProductsSpecification

    Advantage

    Available in the In-line Or 90° Model

    Capacity: Up to 24 CPM

    Packages in Wrap Around Carton

    Product Features

    YH GBP Series – Fast Packing, Smart Protection for Fragile Goods

    The YH GBP series wrap-around case packer with cardboard partition insertion device offers high-speed performance of up to 24 CPM. The packing format can be easily adjusted to accommodate different bottle shapes and sizes, with common configurations such as 2x3, 3x4, and 4x6—ensuring excellent flexibility for diverse packaging needs.

    Equipped with the patented CPI® cardboard partition insertion device, this machine is specially designed to protect fragile containers like glass bottles. It reduces product collisions and label wear, ensuring consistent packaging quality.


    Key Advantages of the CPI® Cardboard Partition Insertion Device

    1. Space-Saving Design: By using single partition boards, this system reduces material usage and saves storage space.
    2. Fast and Convenient Reloading: Single partition boards are easy to handle, making reloading into the storage hopper quick and simple—effectively shortening operation time.
    3. Flexible Partition Direction Selection: Depending on your packaging layout, the system allows you to use only one type of partition—either vertical or horizontal—enhancing packaging flexibility and production efficiency.

    Processed Products

    Specification

    Capacity
    		 14-24 CPM
    Processed Products
    		Beer, wine, sauces, pickles & fermented products
    Packaging Material
    		Corrugated cardboard
    Packaging Type
    		In wrap-around carton
    Power
    		10KW
    Air Consumption
    		140 liter/min.
